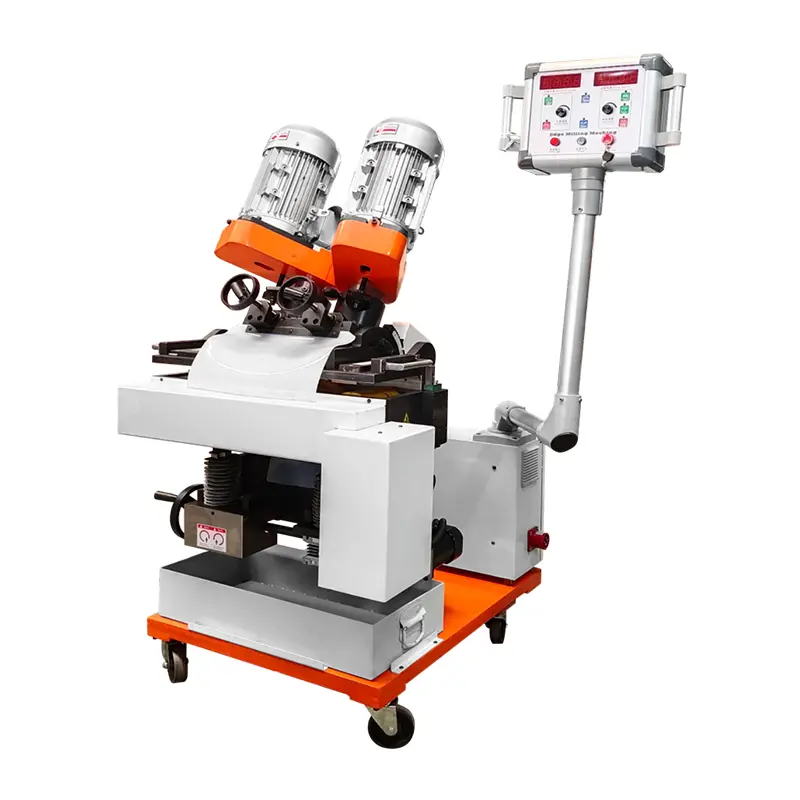

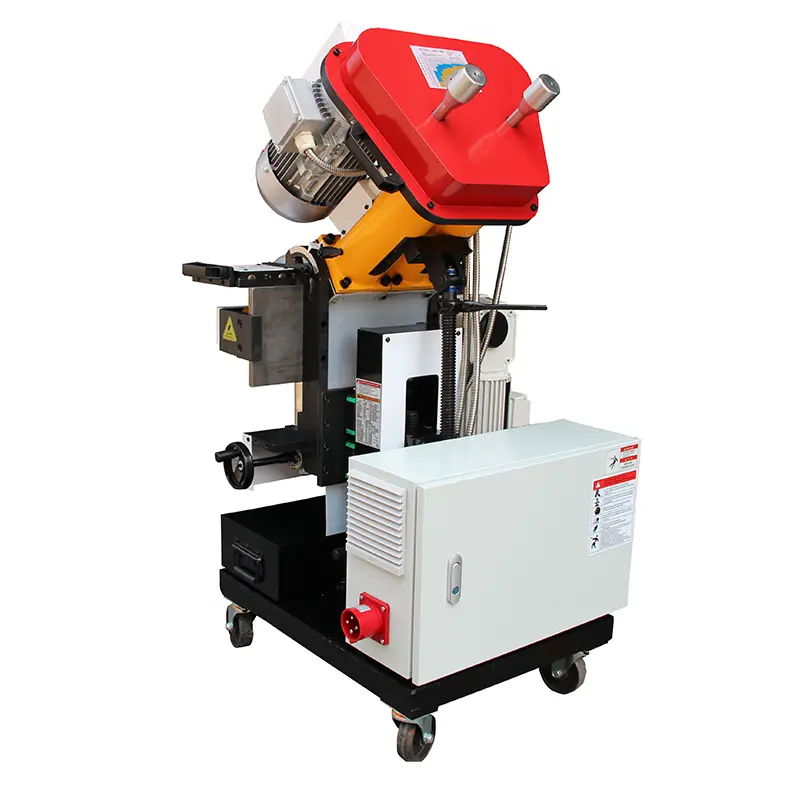

DMM Series Heavy-Duty Automatic Traveling Plate Edge Milling Machine

Overview

The DMM Traveling Milling Series delivers industrial-grade plate beveling for production environments where throughput and reliability matter. At 300-450kg, these machines are built for continuous operation on plates from 5mm to 100mm thick—the workhorses of shipyards, pressure vessel shops, and heavy fabrication facilities.

Key Advantages

• Production-grade construction — 300-450kg frames built for multi-shift operation
• 100mm maximum capacity — DMM-900 handles the thickest structural plates
• Full 0°-90° angle range — Standard V-preps to near-vertical J-grooves
• Cold milling — No heat-affected zone, preserves material properties
• VFD spindle control — Optimize chip load for any material

Model Comparison

Model	Thickness	Angle	Power	Weight	Best For
DMM-2070	5-80mm	0-90°	6.4kW	300kg	Standard production
DMM-2070L	5-80mm	0-90°	6.0kW	320kg	With lifting provisions
DMM-900	5-100mm	0-90°	6.4kW	450kg	Maximum thickness capacity
DMM-100L	5-80mm	0-90°	6.0kW	345kg	Heavy-duty with lifting

Why Choose DMM Series?

Choose DMM when you need:

• Plates over 80mm thick (DMM-900)
• Continuous high-volume production
• Maximum machine stability and cut consistency
• Industrial-grade durability for demanding environments

Consider GL Series instead for:

• Workshop applications under 250kg weight limit
• Single-operator positioning requirements
• Moderate production volumes
• Budget-conscious projects

Customization Options

Every DMM machine can be configured to your requirements:

• Bevel Angle — Custom cutter angles manufactured to your welding specifications
• Capacity Range — Thickness range adjustable for specific material requirements
• Drive System — Electric, pneumatic, or hydraulic based on facility needs

Contact our engineering team to discuss your customization requirements.

Operating Notes

• Feed Speed Selection — Start conservative (150-250 mm/min), increase as cut stabilizes
• Material Considerations — Reduce speed 20-30% for stainless steel and hardened alloys
• Cutter Maintenance — Inspect blade edges before each shift; replace at first sign of wear
• Lifting Provisions — DMM-2070L and DMM-100L include integrated lifting points for crane positioning
