Automatic Feed-Through Plate Beveling Machine

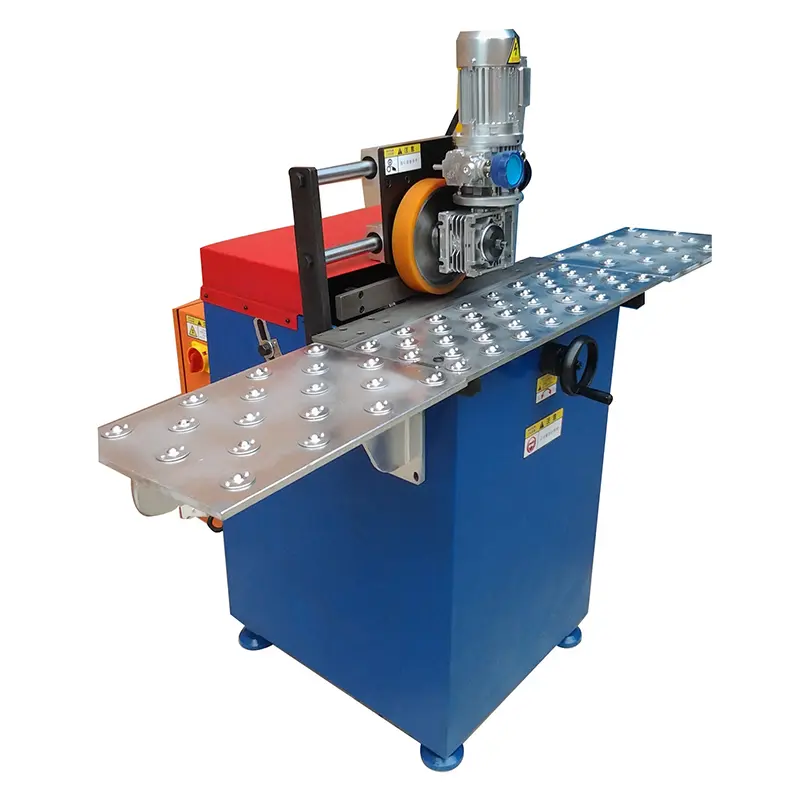

DMM-20D feed-through plate beveling machine for continuous processing. Plates pass through for high-volume production at 0.6-3.3m/min.

Clamp Thickness 2-40mm

Bevel Angle 15°-60°

Total Power 4.75kW

Feed Method Pass-Through

Available Drives:

E - Electric P - Pneumatic H - Hydraulic

Cold Cutting CE Certified 1-Year Warranty OEM Available

Talk via WhatsApp

Compare Models View Full Technical Data

See the DMM-20D continuous feed system process plates at high volume

Overview

The DMM-20D Feed-Through Beveling Machine is designed for production environments where throughput matters. Plates pass continuously through the machine at 0.6-3.3m/min—no stopping to reposition, no manual handling between cuts. At 4.75kW and 550kg, it’s built for sustained high-volume operation.

Key Advantages

Continuous feed processing — Plates pass through without stopping
Variable speed — 0.6-3.3m/min adjustable for optimal results
Production-oriented — Built for high-volume environments
Large worktable — 1000×350mm supports various plate sizes
Cold milling — No heat-affected zone

Technical Specifications

Parameter	Specification
Clamp Thickness	2-40mm
Bevel Angle	15°-60°
Feed Speed	0.6-3.3 m/min
Worktable Size	1000×350mm
Total Power	4750W
Net Weight	550kg
Motor Voltage	AC 380V 50Hz

When to Choose DMM-20D

Situation	Why DMM-20D
High production volume	Continuous feed maximizes throughput
Consistent plate sizes	Optimized for repeated processing
Stationary installation	550kg for permanent production setup
Speed priority	Up to 3.3m/min feed rate

Customization Options

This machine can be tailored to your specific requirements:

Bevel Angle — Custom cutter angles manufactured to match your welding specifications
Capacity Range — Thickness range adjustable for your specific material requirements
Drive System — Choose electric, pneumatic, or hydraulic based on your facility needs

Contact our engineering team to discuss your customization requirements.

Model Comparison

Quick comparison of key specifications. For complete technical data, see full specifications .

Model	Clamp Thickness (mm)	Bevel Angle (°)	Power (kW)	Weight (kg)
DMM-20D	2-40 mm	15-60 °	4.75 kW	550 kg

Need Complete Technical Specifications?

View all parameters including dimensions, tolerances, and downloadable datasheets.

View Full Specifications

Key Features

Continuous Feed Processing

Plates pass through the machine continuously—no stopping to reposition, maximizing throughput.

Variable Feed Speed

Adjustable 0.6-3.3m/min feed rate optimizes processing for different materials and thicknesses.

1000×350mm Worktable

Generous work surface supports plates during continuous feed operation.

Production-Oriented

Designed for high-volume environments processing consistent plate sizes repeatedly.

4.75kW Power

Higher power than benchtop alternatives for faster material removal on production runs.

Cold Milling

No heat-affected zone—maintains material properties through high-speed processing.

Industry Applications

Steel Construction

Bridges, Buildings & Infrastructure Projects

Heavy Manufacturing

Industrial Equipment & Machinery Fabrication

Pressure Vessels

Tanks, Boilers & Pressure Equipment Fabrication

Shipbuilding

Marine Piping Systems & Offshore Vessel Construction

Frequently Asked Questions

How does feed-through processing work?

Plates are fed into one side of the machine and exit the other side with beveled edges. Continuous feed means no stopping to reposition—ideal for processing many plates of similar size.

How does DMM-20D compare to benchtop models?

DMM-20D is a stationary production machine (550kg) designed for high volume. Benchtop models (80-155kg) are portable workshop machines for lower volumes and varied plate sizes.

What plate widths can be processed?

The 1000×350mm worktable supports plates of various widths. Consult specifications for minimum and maximum dimensions.

What are the power requirements?

AC 380V 50Hz three-phase power. Total power consumption is 4750W.
