Automatic Flip-Type Plate Beveling Machine

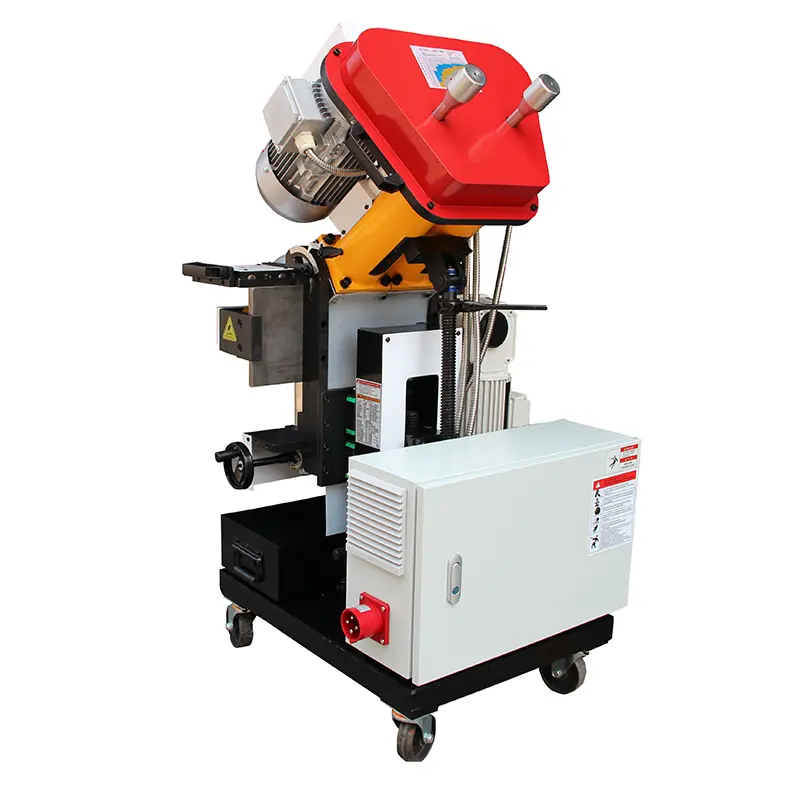

DMM-90X flip-type plate beveling machine with 180° rotating head for top and bottom edge beveling without repositioning. Ideal for K-groove and X-groove preparations.

Clamp Thickness 6-80mm

Bevel Angle 0° ~ ±60°

Total Power 6.52kW

Special Feature 180° Flip

Available Drives:

E - Electric P - Pneumatic H - Hydraulic

Cold Cutting CE Certified 1-Year Warranty OEM Available

Talk via WhatsApp

Compare Models View Full Technical Data

Watch the DMM-90X flip mechanism bevel both plate edges without repositioning

Overview

The DMM-90X Flip Type Beveling Machine solves the double-sided bevel challenge with an innovative 180° rotating cutting head. Instead of flipping heavy plates or using two machines, simply flip the cutting head to process both top and bottom edges from the same position.

Key Advantages

180° flip mechanism — Bevel top, flip, bevel bottom—no plate repositioning
50% setup time savings — Complete double-sided preps in half the time
±60° angle range — Symmetric or asymmetric bevel configurations
Electric clamping — Powered system for consistent holding and quick changeover
Compact 250kg design — Lighter than dual-spindle alternatives

Technical Specifications

Parameter	Specification
Clamp Thickness	6-80mm
Bevel Angle	0° ~ ±60°
Bevel Width (at 37.5°)	0-70mm
Single Bevel Width	0-20mm
Total Power	6520W
Cutting Power	2×3000W
Feed Power	400W
Clamping	Electric
Net Weight	250kg

When to Choose DMM-90X

Situation	Why DMM-90X
K-groove or X-groove required	Flip to bevel both sides
Limited floor space	One machine handles both edges
Moderate production volume	Good balance of speed and investment
Varying plate sizes	Flip mechanism works on any plate length

Customization Options

This machine can be tailored to your specific requirements:

Bevel Angle — Custom cutter angles manufactured to match your welding specifications
Capacity Range — Thickness range adjustable for your specific material requirements
Drive System — Choose electric, pneumatic, or hydraulic based on your facility needs

Contact our engineering team to discuss your customization requirements.

Model Comparison

Quick comparison of key specifications. For complete technical data, see full specifications .

Model	Clamp Thickness (mm)	Bevel Angle (°)	Power (W)	Weight (kg)
DMM-90X	6-80 mm	0-60 °	6520 W	250 kg

Need Complete Technical Specifications?

View all parameters including dimensions, tolerances, and downloadable datasheets.

View Full Specifications

Key Features

180° Flip Mechanism

Rotate the cutting head to bevel top edge, then flip to bevel bottom edge—all without moving the plate.

50% Setup Time Savings

Eliminate plate repositioning for double-sided preparations. Complete K-groove and X-groove preps in half the time.

Matched Bevel Quality

Same machine, same settings, both sides—ensures consistent bevel angles and surface finish for superior weld fit-up.

Electric Clamping

Powered clamping system provides consistent holding force and quick plate changeover.

±60° Angle Range

Full positive and negative angle adjustment for symmetric or asymmetric bevel preparations.

Compact 250kg Frame

Lighter than dual-spindle alternatives while delivering flip functionality for flexible shop deployment.

Industry Applications

Pressure Vessels

Tanks, Boilers & Pressure Equipment Fabrication

Shipbuilding

Marine Piping Systems & Offshore Vessel Construction

Heavy Manufacturing

Industrial Equipment & Machinery Fabrication

Power & Energy

Boiler Tubes, Steam Lines & Energy Facility Piping

Frequently Asked Questions

How does the flip mechanism work?

The entire cutting head assembly rotates 180° on a pivot axis. This allows you to bevel the top edge, then flip the head to bevel the bottom edge without moving the plate.

What weld preparations can the DMM-90X produce?

The DMM-90X excels at X-groove (double-V), K-groove, and any preparation requiring bevels on both top and bottom plate edges.

How does it compare to the DMM-1232 dual-side machine?

DMM-90X bevels one side at a time (with flip between), while DMM-1232 bevels both sides simultaneously. Choose DMM-90X for flexibility and lower investment; choose DMM-1232 for maximum throughput.

What are the power requirements?

AC 380V 50Hz three-phase power. Total power is 6520W (2×3000W cutting motors plus 400W feed motor).
