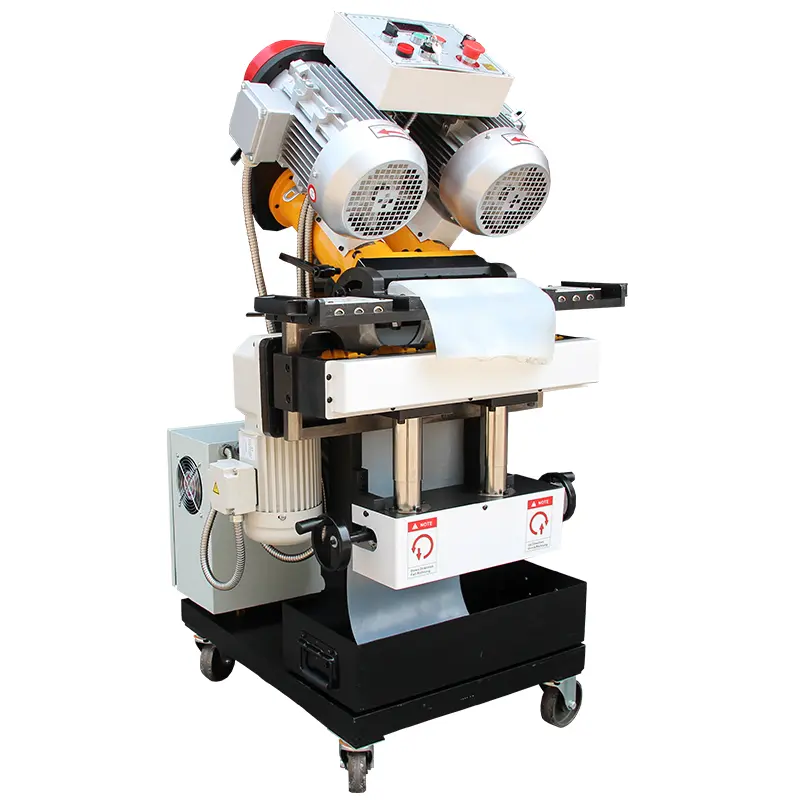

Automatic Double-Sided Plate Beveling Machine

Overview

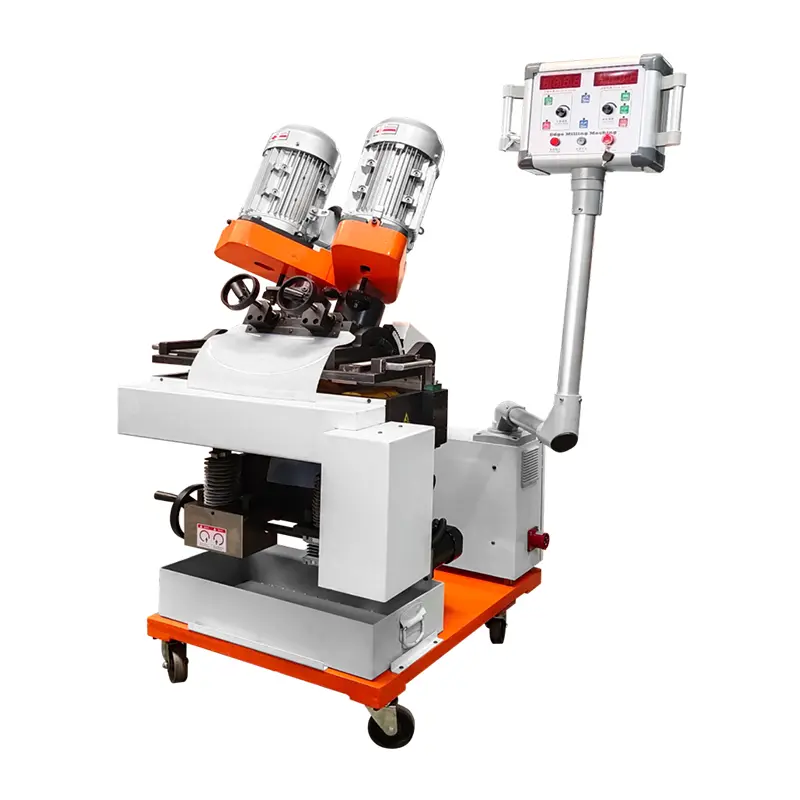

The DMM-1232 Dual-Side Beveling Machine is a specialized high-productivity solution for double-sided weld preparations. By beveling both top and bottom plate edges simultaneously, it eliminates the need for plate flipping and secondary passes—cutting processing time in half while ensuring perfectly matched opposing bevels.

Key Advantages

• Simultaneous dual-side beveling — Both edges processed in one pass
• Double productivity — 50% time savings on X-groove and K-groove preparations
• Perfect alignment — Opposing bevels cut together for consistent fit-up
• Heavy-duty 420kg frame — Stable operation with dual cutting heads
• Adjustable angles — Top 0-60°, bottom 0-45° for flexible configurations

Technical Specifications

Parameter	Specification
Clamp Thickness	5-60mm
Top Bevel Angle	0-60°
Bottom Bevel Angle	0-45°
Single Bevel Width	15mm per side
Max Bevel Width	50mm per side
Total Power	7500W (2×3000W)
Feed Speed	0-1500 mm/min
Net Weight	420kg
Motor Voltage	AC 380V 50Hz

When to Choose DMM-1232

Situation	Why DMM-1232
K-groove or X-groove required	Processes both sides simultaneously
High-volume production	50% time savings per plate
Consistent weld quality critical	Matched bevels ensure penetration
Labor cost reduction	One machine, one operator, both edges

Customization Options

This machine can be tailored to your specific requirements:

• Bevel Angle — Custom cutter angles manufactured to match your welding specifications
• Capacity Range — Thickness range adjustable for your specific material requirements
• Drive System — Choose electric, pneumatic, or hydraulic based on your facility needs

Contact our engineering team to discuss your customization requirements.
