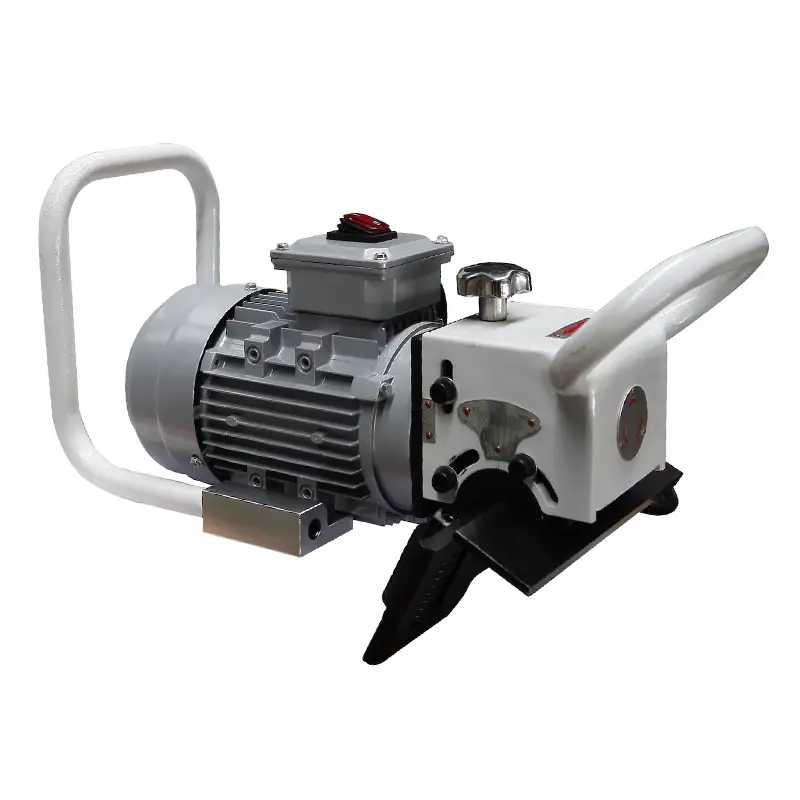

SKF-15 Handheld Series view 2
Ultra-Portable Plate Beveler

Handheld Plate Beveling Machine

Ultra-portable handheld plate beveling machines for 3-15mm plates. SKF-15 and SKF-18 offer single-hand operation for field work and quick weld preparation.

Plate Thickness 3-18mm
Bevel Angles 15°-60°
Weight 4-6kg
Models Available 2 Models
Available Drives:
SKF - Electric
Cold Cutting CE Certified 1-Year Warranty OEM Available
Talk via WhatsApp
Compare Models View Full Technical Data

See the SKF-15 Handheld create precise bevels on plate edges in seconds

Overview

The SKF-15 Handheld Series puts professional plate beveling in the palm of your hand. At only 4-6kg, these ultra-portable machines deliver consistent bevels wherever the work is—in the field, on rooftops, inside vessels, or anywhere bringing parts to a stationary machine isn’t practical.

Key Advantages

  • Ultra-lightweight - Only 4-6kg for true portability
  • Single-hand operation - Ergonomic design reduces fatigue
  • Any edge shape - Straight, curved, or irregular
  • Go anywhere - Field service, confined spaces, heights

Which Model Should You Choose?

For maximum portability and most field work (3-15mm plates):
The SKF-15 is the lightest true professional beveler at just 4kg. It’s our top recommendation for field service technicians, maintenance crews, and anyone who needs to carry their beveler to the work. Perfect for touch-ups, repairs, and light fabrication.

For slightly thicker plates without sacrificing portability (5-18mm):
Choose the SKF-18 when you regularly work with plates up to 18mm. At 6kg it’s still highly portable, but the extra motor power (1500W vs 1100W) handles heavier cuts smoothly. Ideal for shops that need a bit more capacity.

Where SKF-15 Excels

SituationWhy SKF-15
Field repairsPortable, no setup required
Confined spacesSmall, maneuverable
Rooftop workLightweight for carrying
Quick touch-upsInstant beveling, minimal cleanup
Irregular shapesFollows any contour
Maintenance turnaroundsFast deployment

Operating Principle

  1. Set bevel angle and depth
  2. Position machine on plate edge
  3. Start motor with trigger
  4. Guide along edge—machine cuts as you move
  5. Release trigger when complete

Simple, intuitive operation with minimal learning curve.

Bevel Capabilities

Bevel TypeCapability
Single V✓ 15°-60°
Curved edges✓ Any radius
Hole bevels✓ Circular, rectangular
Irregular shapes✓ Follow any contour

Customization Options

  • Bevel Angle — Standard 15°-60° range, custom angles on request
  • Voltage — 220V/50Hz standard, other configurations available
  • Blade Configuration — Spare blade sets and heavy-duty blades available
  • Accessories — Heavy-duty carrying case and extended reach guide

Model Comparison

Quick comparison of key specifications. For complete technical data, see full specifications .

Model Plate Thickness (mm) Bevel Width (mm) Bevel Angle (°) Motor Power (W)
SKF-15 3-15 mm ≤15 mm 15-60 ° 1100 W
SKF-18 5-18 mm ≤18 mm 15-60 ° 1500 W
Need Complete Technical Specifications?

View all parameters including dimensions, tolerances, and downloadable datasheets.

View Full Specifications

Key Features

True Single-Hand Operation

Ergonomic design allows comfortable one-handed use, leaving the other hand free to stabilize workpiece.

Ultra-Lightweight

At only 4-6kg, easily carried anywhere and usable for extended periods without fatigue.

Wide Angle Range

Adjustable from 15° to 60° to cover all standard and specialty bevel requirements.

Multi-Surface Capability

Works on straight edges, curves, holes, and irregular shapes—true all-purpose beveling.

Cold Cutting Process

No sparks, no heat-affected zone, safe for stainless steel and hazardous environments.

Go-Anywhere Portability

Take professional beveling capability to any job site, rooftop, or confined space.

Industry Applications

Steel Construction

Steel Construction

Bridges, Buildings & Infrastructure Projects

Heavy Manufacturing

Heavy Manufacturing

Industrial Equipment & Machinery Fabrication

Shipbuilding

Shipbuilding

Marine Piping Systems & Offshore Vessel Construction

Pressure Vessels

Pressure Vessels

Tanks, Boilers & Pressure Equipment Fabrication

Frequently Asked Questions

What's the difference between SKF-15 and SKF-18?

SKF-15 handles plates up to 15mm with 15mm max bevel width at 4kg. SKF-18 handles plates up to 18mm with 18mm max bevel width at 6kg. Choose based on your maximum plate thickness.

Can it bevel holes and cutouts?

Yes, the handheld design allows following any edge contour including circular openings, rectangular cutouts, and irregular shapes.

How does it compare to HDL Handheld series?

SKF-15 series is lighter and more portable (4-6kg vs 6-9kg), while HDL offers wider bevel widths. SKF-15 for maximum portability; HDL for heavier-duty handheld work.

Is it suitable for stainless steel?

Yes, the cold cutting process is ideal for stainless—no heat discoloration or carbide precipitation.

What power supply is required?

Both models use standard 220V single-phase power. Compact and jobsite-friendly.

How long do the blades last?

Blade life depends on material and usage. Typically 30-60 meters per blade set on mild steel. Carbide blades can be resharpened.

Can one person operate it all day?

Yes, the lightweight ergonomic design minimizes fatigue. Many operators use SKF-15 continuously throughout full shifts.
