Automatic Dual-Spindle Plate Beveling Machine

Twin Cutters for Maximum Throughput

Automatic Dual-Spindle Plate Beveling Machine

DMM-900X dual-spindle plate beveling machine with twin 63mm cutters at 8400W total power. Maximum throughput for high-volume production environments.

Clamp Thickness 5-80mm

Bevel Angle 0°-90°

Total Power 8.4kW

Special Feature Dual Spindle

Available Drives:

E - Electric P - Pneumatic H - Hydraulic

Cold Cutting CE Certified 1-Year Warranty OEM Available

Talk via WhatsApp

Compare Models View Full Technical Data

Watch the DMM-900X dual spindle system double your plate beveling throughput

Overview

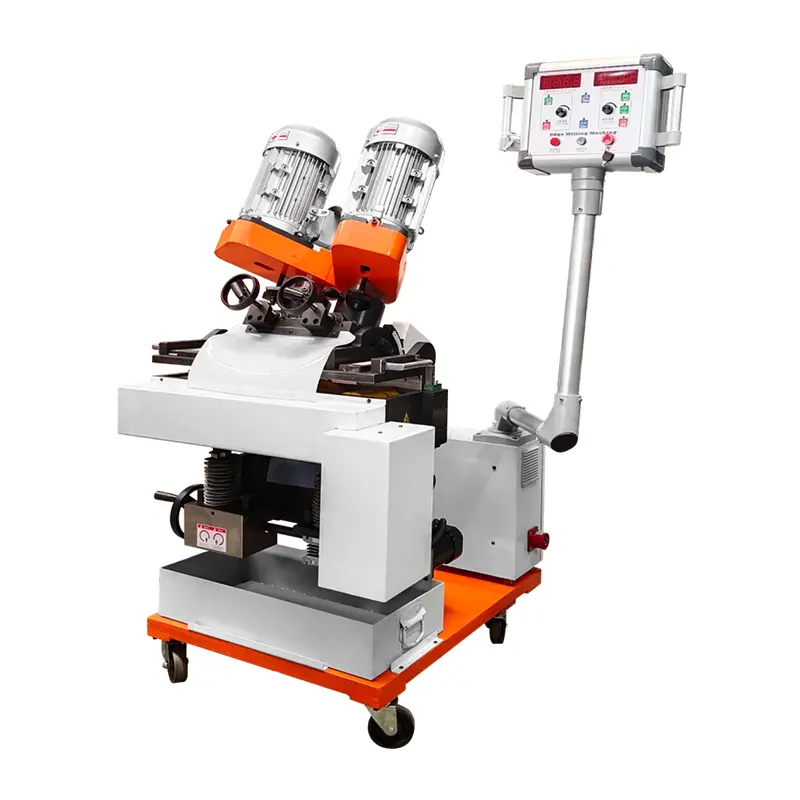

The DMM-900X Dual Spindle Beveling Machine delivers maximum throughput with twin 63mm cutter discs powered by 8400W total. When production volume and cycle time are critical, the dual-spindle configuration removes material twice as fast as single-spindle alternatives while achieving bevel widths up to 80mm in a single pass.

Key Advantages

Dual 63mm cutters — Two spindles working simultaneously
8400W total power — Industry-leading output for aggressive cutting
80mm bevel width — Wide preparations in a single pass
Full 0°-90° range — Complete angle flexibility
370kg heavy-duty frame — Stable dual-spindle operation

Technical Specifications

Parameter	Specification
Clamp Thickness	5-80mm
Bevel Angle	0°-90°
Single Bevel Width	1-35mm
Max Bevel Width	80mm
Total Power	8400W
Cutter Diameter	63mm × 2
Spindle Speed	750-1050 r/min
Net Weight	370kg

Speed Reference (Q235 Steel)

Thickness	Recommended Speed
10mm	950 r/min
20mm	900 r/min
40mm	850 r/min
60mm	800 r/min
80mm	750 r/min

When to Choose DMM-900X

Situation	Why DMM-900X
High production volume	Twin spindles double throughput
Wide bevels required	Up to 80mm in single pass
Thick plates (60-80mm)	8400W power handles heavy cuts
Cycle time critical	Fastest material removal

Customization Options

This machine can be tailored to your specific requirements:

Bevel Angle — Custom cutter angles manufactured to match your welding specifications
Capacity Range — Thickness range adjustable for your specific material requirements
Drive System — Choose electric, pneumatic, or hydraulic based on your facility needs

Contact our engineering team to discuss your customization requirements.

Model Comparison

Quick comparison of key specifications. For complete technical data, see full specifications .

Model	Clamp Thickness (mm)	Bevel Angle (°)	Power (kW)	Weight (kg)
DMM-900X	5-80 mm	0-90 °	8.4 kW	370 kg

Need Complete Technical Specifications?

View all parameters including dimensions, tolerances, and downloadable datasheets.

View Full Specifications

Key Features

Dual 63mm Cutter Discs

Two cutting heads work simultaneously for double the material removal rate and wider bevels in a single pass.

8400W Total Power

Industry-leading power output drives both spindles at 750-1050 r/min for aggressive material removal.

80mm Bevel Width

Achieve wide bevels up to 80mm in a single pass—reduces cycle time on heavy plate preparations.

Full 0°-90° Range

Complete angle adjustment covers all standard and specialty weld preparation requirements.

Heavy-Duty 370kg Frame

Rigid construction absorbs vibration from dual cutting heads for stable, precise operation.

Double Productivity

Twin spindles cut processing time compared to single-spindle machines on the same plate thickness.

Industry Applications

Shipbuilding

Marine Piping Systems & Offshore Vessel Construction

Pressure Vessels

Tanks, Boilers & Pressure Equipment Fabrication

Heavy Manufacturing

Industrial Equipment & Machinery Fabrication

Steel Construction

Bridges, Buildings & Infrastructure Projects

Frequently Asked Questions

How do the dual spindles work?

Two 63mm cutter discs are mounted on separate spindles powered by a combined 8400W. They cut simultaneously, doubling material removal compared to single-spindle machines.

What is the advantage over single-spindle machines?

DMM-900X removes material twice as fast and can achieve wider bevels (up to 80mm) in a single pass. Ideal for high-volume production where cycle time matters.

How does it compare to the DMM-90X flip type?

DMM-900X focuses on throughput and wide bevels. DMM-90X focuses on double-sided capability (flip to bevel both top and bottom). Choose based on your primary need.

What are the power requirements?

AC 380V 50Hz three-phase power. Total power is 8400W for both spindles combined.
