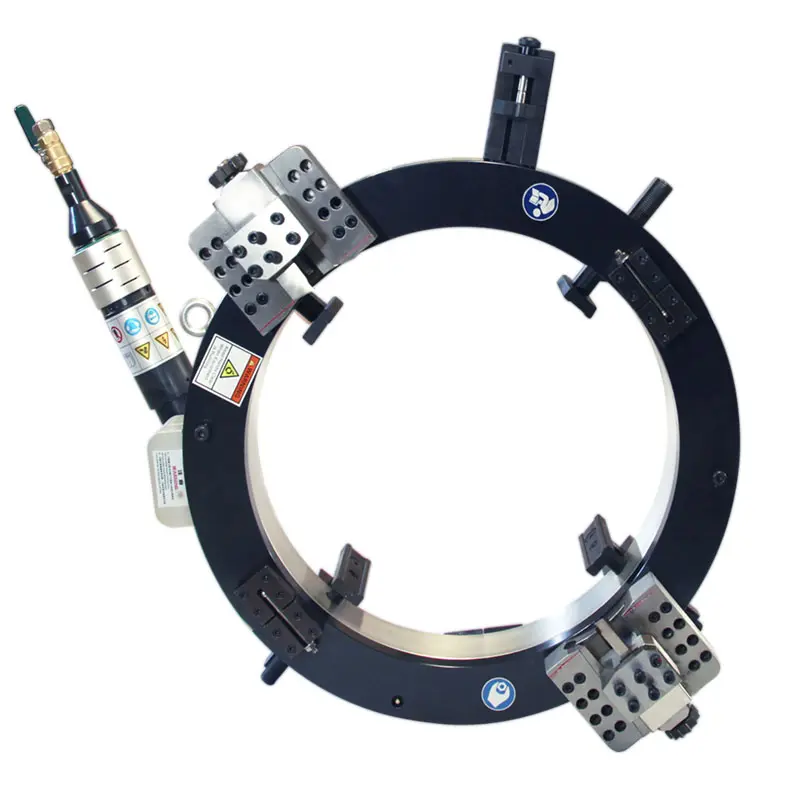

External Clamp Split Frame Pipe Beveling Machine

Overview

The Split Frame Series is our heavy-duty solution for in-line pipeline cutting and beveling. Unlike machines that slide over pipe ends, the split-frame clamshell design wraps around the pipe at any point along its length. This capability is essential for pipeline maintenance, tie-ins, and offshore operations where pipes are fixed in place and end access is impossible.

Key Advantages

• In-line mounting - Clamps anywhere on pipe, no end access needed
• 110mm wall capacity - Handles the thickest walls with hydraulic drive
• Four drive options - Match power source to environment and wall thickness
• Field portable - Breaks down for transport to remote locations

Why Split Frame?

Most pipe beveling machines need access to the pipe end—they slide on like a ring. But real-world pipelines are buried underground, suspended offshore, connected at both ends, or impossible to move. Split frame opens like a clamshell, wraps around the pipe, and gets the job done.

Size Groups

Group	OD Range	Models	Typical Application
Small	89-325mm	OCE-168 to OCE-325	Process piping, distribution
Medium	377-630mm	OCE-377 to OCE-630	Transmission lines, headers
Large	715-1066mm	OCH-715 to OCH-1066	Main trunk lines, risers
Extra Large	1230-1830mm	OCE/OCH-1230 to 1830	Major pipelines, penstocks

Drive Selection Guide

Drive	Code	Wall Capacity	Best For
Electric	OCE	≤30mm	Standard pipe, accessible power
Pneumatic	OCP	≤30mm	Hazardous areas, offshore
Hydraulic	OCH	≤110mm	Heavy wall, main steam lines
CNC	OCS	≤110mm	Automated, precision multi-pass

Wall Thickness & Tooling

Wall Thickness	Tooling Required	Drive
≤30mm	Standard holder	OCE/OCP
30-70mm	Heavy-duty holder	OCE/OCP/OCH
70-110mm	Bridge-type holder	OCH only

Typical Cycle Times

Wall Thickness	Approximate Time
10mm	15-25 minutes
30mm	30-45 minutes
50mm	45-60 minutes
80mm	75-100 minutes
110mm	90-120 minutes

Times vary with diameter and material.

Customization Options

• Drive System — Electric, pneumatic, hydraulic, or CNC options based on application
• Tool Holder — Standard, heavy-duty, or bridge-type for different wall thicknesses
• Power Unit — Standard, explosion-proof, or diesel HPU for remote sites
• Voltage — 380V/50Hz standard, other configurations available
