Handheld Multi-Function Beveling Machine

Handheld portable beveling machines for plates, curves, and holes. HDL-10A and HDL-15A handle straight edges, curved surfaces, and circular openings with one compact tool.

Bevel Width 1-15mm

Bevel Angles 30° / 45° / 60°

Min Diameter ≥200mm

Models Available 2 Models

Available Drives:

E - Electric P - Pneumatic H - Hydraulic

Cold Cutting CE Certified 1-Year Warranty OEM Available

Talk via WhatsApp

Compare Models View Full Technical Data

Watch the lightweight HDL Series bevel pipes with one-hand operation

Overview

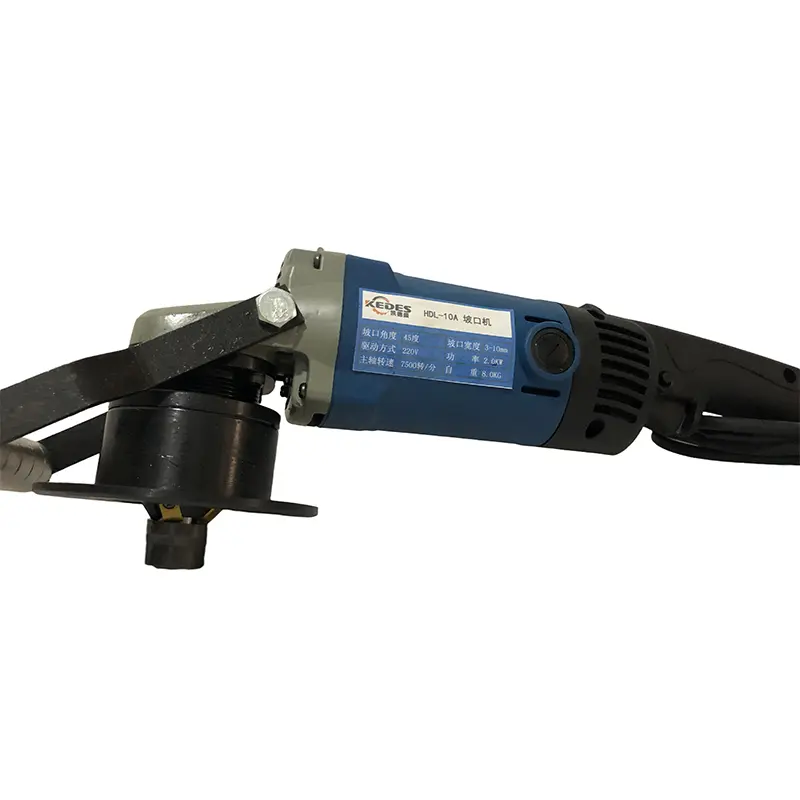

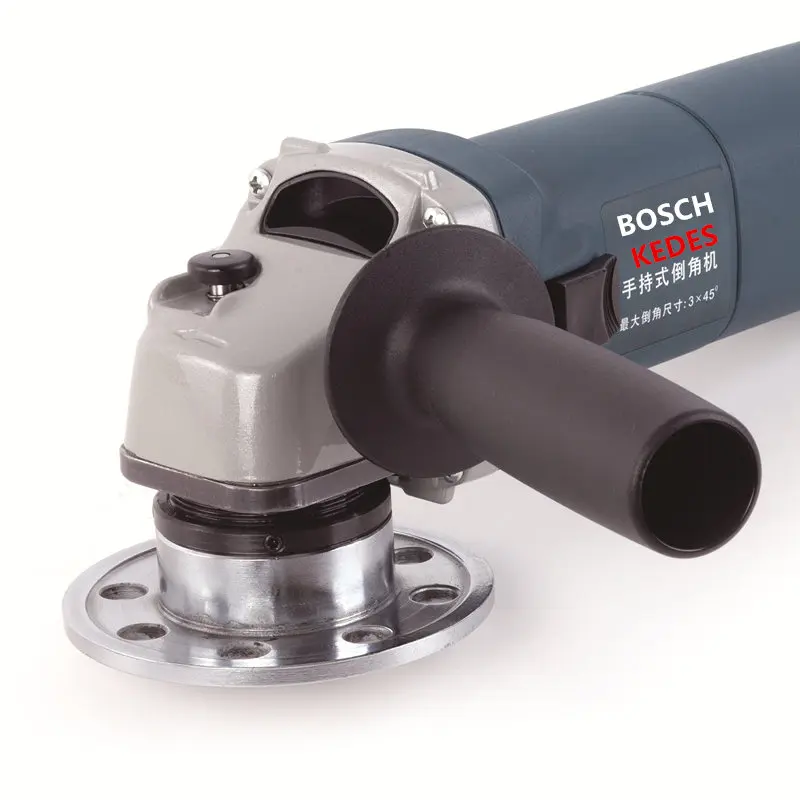

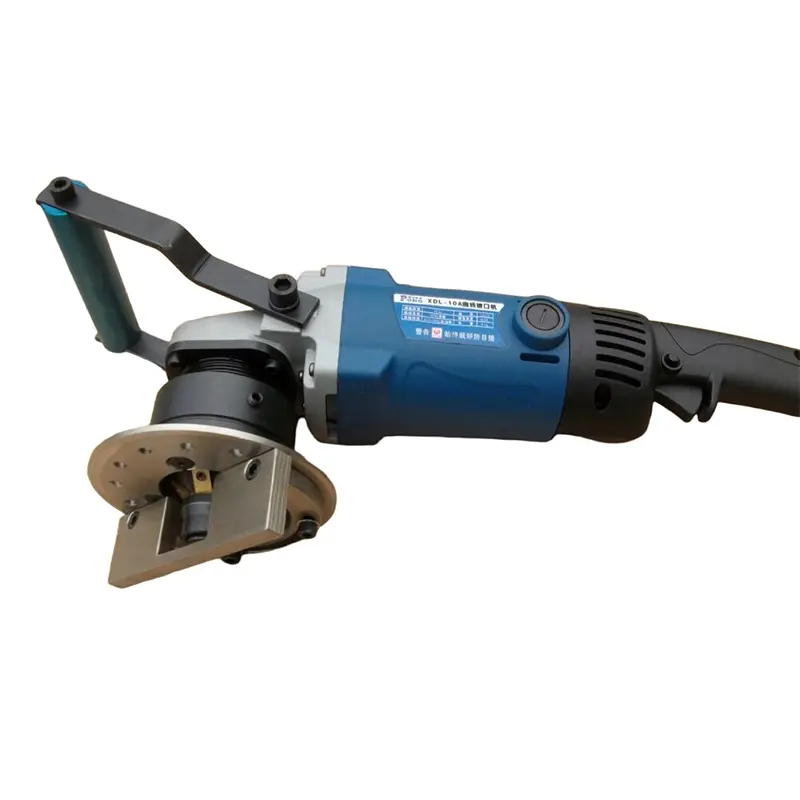

The HDL Handheld Series brings professional beveling capability to a portable, ergonomic package. Unlike fixed-mount machines that require bringing the workpiece to the tool, HDL machines go to the work—beveling straight edges, curved surfaces, and hole cutouts with equal ease.

Key Advantages

3-in-1 capability - Straight edges, curves, and holes with one machine
Truly portable - At just 7kg, go anywhere the work is
Standard angle options - 30°, 45°, or 60° covers most weld prep needs
Cold process - Safe for stainless and sensitive environments

Multi-Surface Versatility

Traditional beveling machines specialize in one workpiece type. HDL machines handle them all:

Surface Type	Capability
Straight plate edges	✓ Full length beveling
Curved plates	✓ Follow any contour
Circular holes	✓ Nozzle and manway prep
Rectangular cutouts	✓ Access panels, ports
Irregular shapes	✓ Custom fabrication

Technical Specifications

Specification	HDL-10A	HDL-15A
Bevel Width	1-10mm	1-15mm
Bevel Angles	30° / 45° / 60°	30° / 45° / 60°
Motor Power	2000W	2400W
Weight	7kg	7kg

→ View full specifications and model comparison

Operating Principle

Select cutter with desired bevel angle (30°, 45°, or 60°)
Adjust cutting depth for required bevel width
Position machine on workpiece edge
Guide along edge—machine cuts as you move
Complete bevel in single pass for most applications

Ideal Applications

When to choose HDL over fixed machines:

Workpiece too large to move
Multiple scattered bevel locations
Hole and cutout beveling
Field repair work
Mixed straight and curved edges
Quick touch-up beveling

Customization Options

Bevel Angle — Fixed cutter angles (30°, 45°, 60°), specify when ordering
Voltage — 220V/50Hz standard, other configurations on request
Blade Configuration — Carbide inserts optimized for mild steel, stainless, or aluminum

Model Comparison

Quick comparison of key specifications. For complete technical data, see full specifications .

Model	Bevel Width (mm)	Bevel Angles (°)	Min Diameter (mm)	Motor Power (W)
HDL-10A	1-10 mm	30° / 45° / 60° °	≥200 mm	2000 W
HDL-15A	1-15 mm	30° / 45° / 60° °	≥200 mm	2400 W

Need Complete Technical Specifications?

View all parameters including dimensions, tolerances, and downloadable datasheets.

View Full Specifications

Key Features

Multi-Surface Capability

One machine handles straight plate edges, curved surfaces, and circular hole beveling—true 3-in-1 versatility.

Ergonomic Handheld Design

Lightweight and balanced for comfortable one-handed operation, reducing operator fatigue on long jobs.

Fixed Angle Options

Choose 30°, 45°, or 60° cutter angles to match your weld joint requirements—specify when ordering.

4-Blade Cutting Head

Four carbide blades provide smooth cutting action and extended tool life between sharpening.

Cold Milling Process

No heat-affected zone, no sparks—safe for stainless steel and use near flammable materials.

Ultra-Portable

At only 7kg, easily carried anywhere on the job site for quick touch-up or production beveling.

Industry Applications

Steel Construction

Bridges, Buildings & Infrastructure Projects

Pressure Vessels

Tanks, Boilers & Pressure Equipment Fabrication

Shipbuilding

Marine Piping Systems & Offshore Vessel Construction

Power & Energy

Boiler Tubes, Steam Lines & Energy Facility Piping

Frequently Asked Questions

What's the difference between HDL-10A and HDL-15A?

HDL-10A handles up to 10mm bevel width with 2000W motor. HDL-15A handles up to 15mm bevel width with 2400W motor. Both weigh 7kg. Choose based on your maximum bevel depth requirement.

Can it bevel holes and cutouts?

Yes, both models can bevel around circular openings (minimum 200mm diameter), rectangular cutouts, and irregular shapes. The handheld design allows following any edge contour.

What bevel angles are available?

Both models use fixed-angle cutters in 30°, 45°, or 60° configurations. Specify the angle when ordering. Additional cutter angles available on request.

Is it suitable for stainless steel?

Yes, the cold milling process is ideal for stainless steel—no heat discoloration, maintains corrosion resistance, and produces clean edges.

How long do the blades last?

Blade life depends on material and usage. Typically 50-100 meters of beveling per blade set on mild steel. Carbide blades can be resharpened 3-4 times.

Can one person operate it?

Yes, the ergonomic design allows comfortable single-operator use. The lightweight 7kg construction minimizes fatigue during extended operation.

What power supply is required?

Both models use standard 220V/50Hz AC single-phase power. Other voltage configurations available on request.
