Internal Expansion Pipe Beveling Machine - T Model

ID-Mounted Portable Beveler

Internal Expansion Pipe Beveling Machine - T Model

Internal expansion pipe bevelers for 18-830mm ID pipes. T-Model series features vertical motor design for tight spaces. Electric, pneumatic, and Metabo drive options available.

Pipe ID Range 18-830mm

Wall Thickness Up to 15mm

Drive Options Electric / Pneumatic / Metabo

Models Available 9 Models

Available Drives:

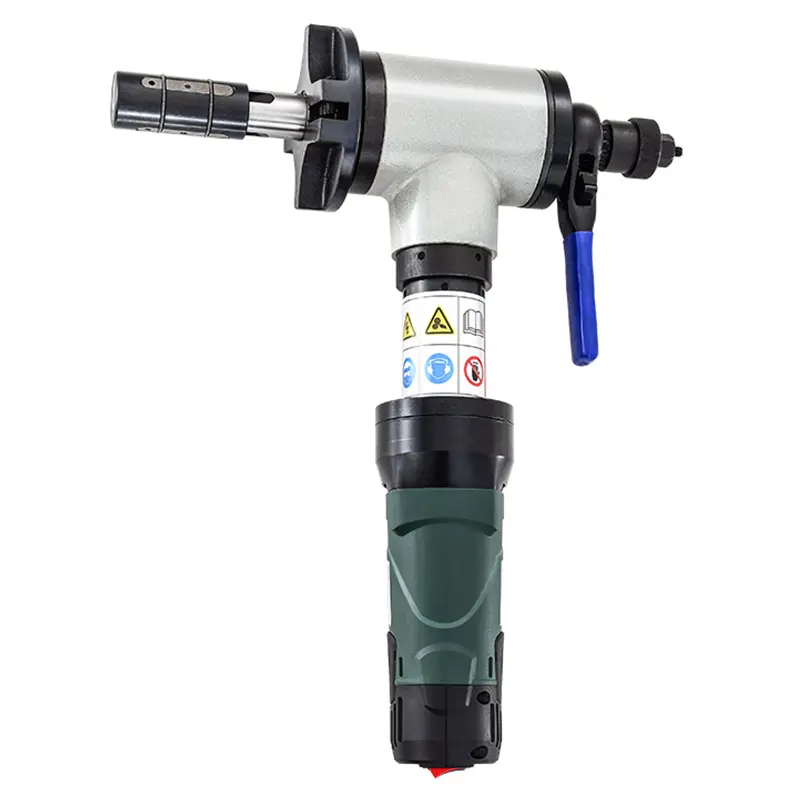

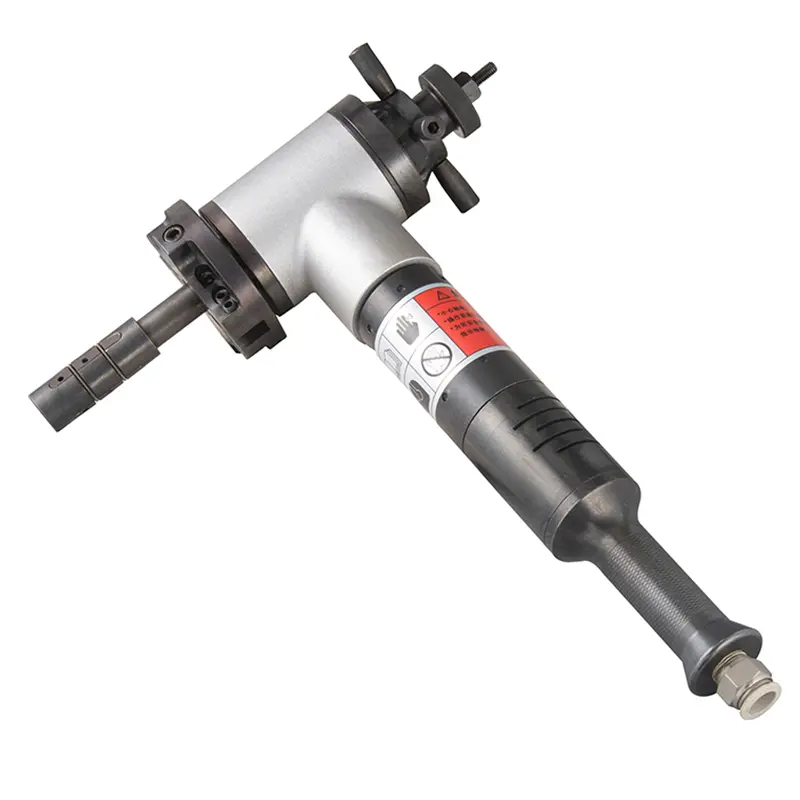

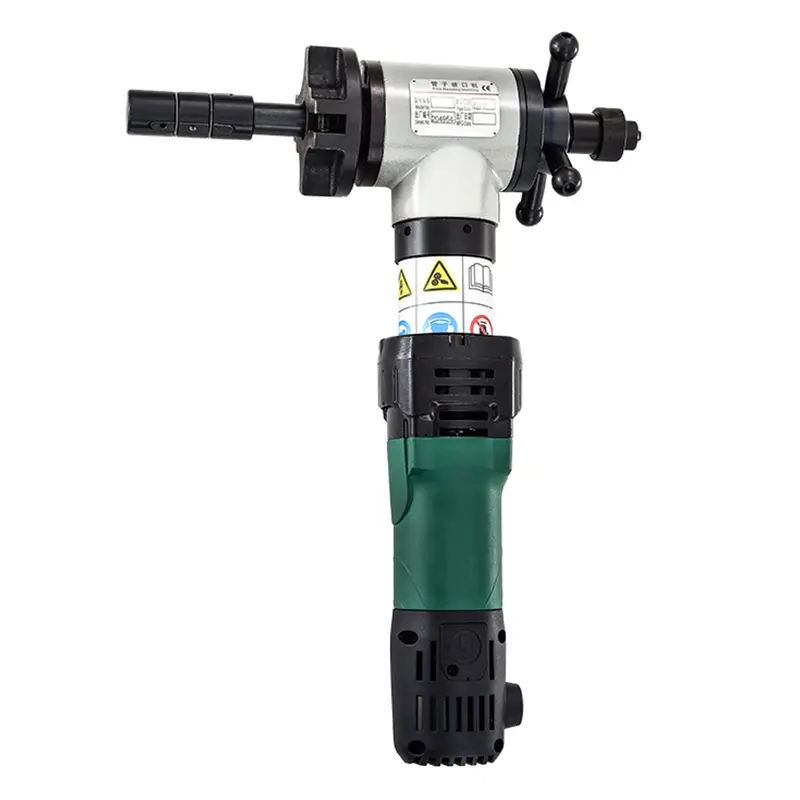

ISE - Electric ISP - Pneumatic ISM - Metabo

Cold Cutting CE Certified 1-Year Warranty OEM Available

Talk via WhatsApp

Compare Models View Full Technical Data

Watch the compact ISE-T Series access tight spaces for internal pipe beveling

Overview

The ISE T-Model Series represents our core lineup of ID-mounted (internal expansion) pipe beveling machines. Designed for precision weld preparation on small to medium diameter pipes, these portable units deliver consistent bevel quality across boiler manufacturing, heat exchanger fabrication, and pressure vessel construction.

Key Advantages

Self-centering expansion - Automatically aligns to pipe center, no manual adjustment needed
Compact T-configuration - Vertical motor design for tight spaces and row tube applications
Cold cutting process - No heat-affected zone, safe for sensitive environments
Interchangeable drives - Same clamping unit works with electric, pneumatic, or Metabo motors

Which Model Should You Choose?

For boiler tubes and instrument tubing (18-80mm ID):
The ISE-T-30 and ISE-T-80 are our go-to models for boiler manufacturers. Lightweight enough for extended overhead work, yet powerful enough for production runs. Most boiler shops keep both sizes on hand.

For heat exchangers and process piping (40-160mm ID):
Choose the ISE-T-120 or ISE-T-159. These mid-range models handle the sweet spot of industrial piping work. If you’re uncertain between sizes, the T-159 offers more flexibility with minimal weight penalty.

For pressure vessel nozzles and headers (80-350mm ID):
The ISE-T-252 and ISE-T-352 bridge the gap between tube work and large pipe applications. Perfect for pressure vessel fabricators who need precision on nozzle preparations.

For large drums and main headers (250-830mm ID):
Our ISE-T-426, T-630, and T-850 models serve heavy industrial applications. The T-630 is particularly popular among power plant contractors for its broad coverage of common header sizes.

Drive Options

Drive Code	Type	Best For
ISE	Electric (220V)	General workshop, most common choice
ISP	Pneumatic	Hazardous areas, Ex zones, offshore
ISM	Metabo Electric	Premium quality, heavy-duty use

Customization Options

Bevel Angle — Standard angles (30°, 37.5°, 45°), custom angles on request
Drive System — Electric (ISE), pneumatic (ISP), or Metabo (ISM) options
Voltage — 220V/50Hz standard, other configurations available
Tooling — J-prep radius cutters and additional angle cutters available

Model Comparison

Quick comparison of key specifications. For complete technical data, see full specifications .

Model	ID Range (mm)	Wall Thickness (mm)	Bevel Angle (°)	Rotation Speed (r/min)
ISE-T-30	18-28 mm	≤15 mm	0-45 °	50 r/min
ISE-T-80	28-76 mm	≤15 mm	0-45 °	55 r/min
ISE-T-120	40-120 mm	≤15 mm	0-45 °	30 r/min
ISE-T-159	65-159 mm	≤15 mm	0-45 °	35 r/min
ISE-T-252	80-240 mm	≤15 mm	0-45 °	16 r/min
ISE-T-352	150-330 mm	≤15 mm	0-45 °	14 r/min
ISE-T-426	250-426 mm	≤15 mm	0-45 °	12 r/min
ISE-T-630	300-600 mm	≤15 mm	0-45 °	10 r/min
ISE-T-850	600-830 mm	≤15 mm	0-45 °	9 r/min

Need Complete Technical Specifications?

View all parameters including dimensions, tolerances, and downloadable datasheets.

View Full Specifications

Key Features

Self-Centering Expansion

Automatically centers and clamps inside the pipe ID, ensuring perfect alignment without manual adjustment.

Compact T-Design

Vertical motor configuration minimizes radial footprint, ideal for tight spaces and row tube work.

Cold Cutting Process

No heat-affected zone, preserves material properties and eliminates fire hazards.

Portable & Lightweight

Smallest models under 4kg, easily carried to job site for field operations.

Multiple Bevel Angles

Adjustable from 0° to 45°, supports V, U, and compound bevel profiles.

Interchangeable Drive

Same clamping unit works with electric, pneumatic, or Metabo motor heads.

Industry Applications

Power & Energy

Boiler Tubes, Steam Lines & Energy Facility Piping

Oil & Gas

Precision Pipe Preparation for Pipelines, Refineries & Offshore Platforms

Pressure Vessels

Tanks, Boilers & Pressure Equipment Fabrication

Heavy Manufacturing

Industrial Equipment & Machinery Fabrication

Frequently Asked Questions

What's the difference between T-Model and II-Model?

T-Model has a vertical motor (T-shape) for minimal radial clearance, with max wall thickness ≤15mm. II-Model has an angled motor configuration designed for heavier cuts up to ≤75mm wall thickness.

Can I use pneumatic drive in all models?

Yes, all T-Model sizes are available with ISE (electric), ISP (pneumatic), or ISM (Metabo) drive options. Specify your preference when ordering.

What bevel angles are supported?

Standard angles include 0°, 30°, 37.5°, and 45°. Custom angles can be achieved with adjustable tool holders.

How do I select the right model for my pipe?

Match the model to your pipe's inner diameter (ID). Each model covers a specific ID range with some overlap. For pipes at the boundary, choose the smaller model for lighter weight or larger model for more rigidity.

What power supply is required?

Electric models (ISE/ISM) use 220V AC single phase. Pneumatic models (ISP) require 0.6-0.8 MPa compressed air supply.

How long does a typical bevel take?

Most bevels complete in 30-90 seconds depending on pipe diameter and wall thickness. Setup time adds another 1-2 minutes for clamping and adjustment.

Are replacement blades and spare parts available?

Yes, carbide inserts, blade holders, expansion cones, and other wear parts are stocked. Standard delivery within 3-5 business days.
